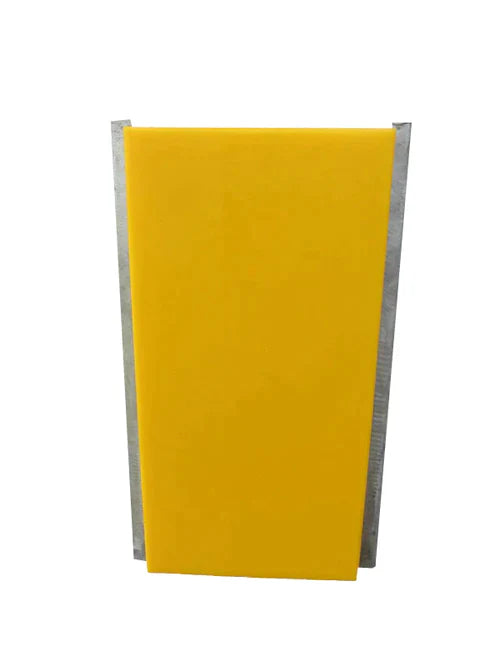

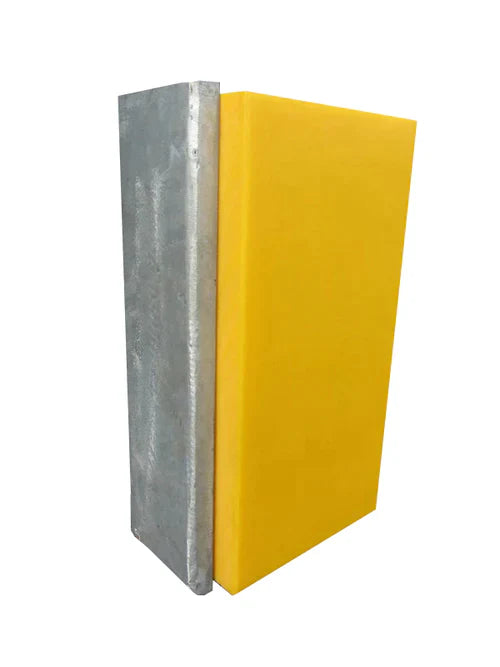

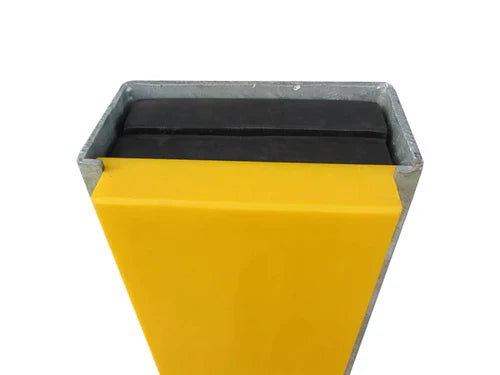

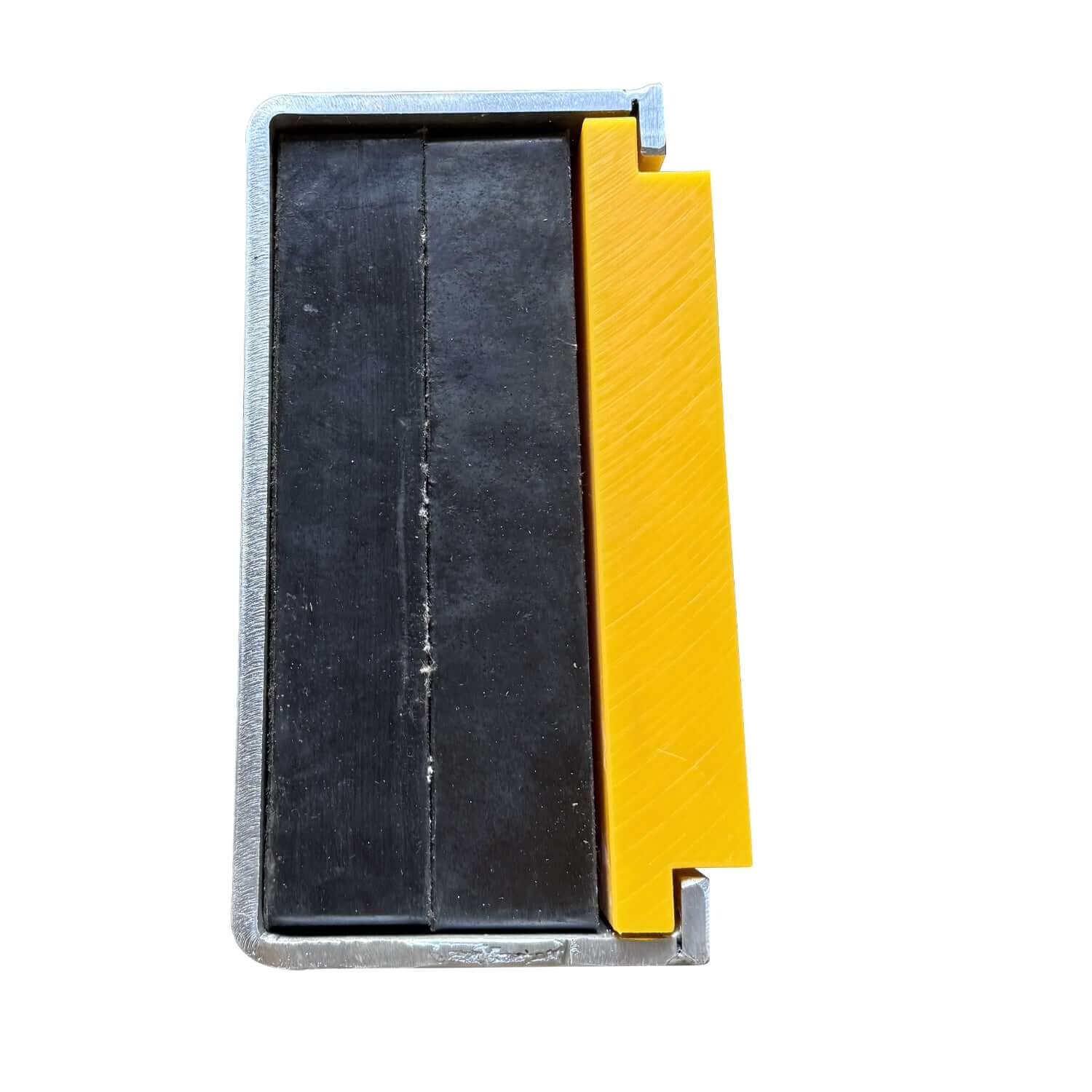

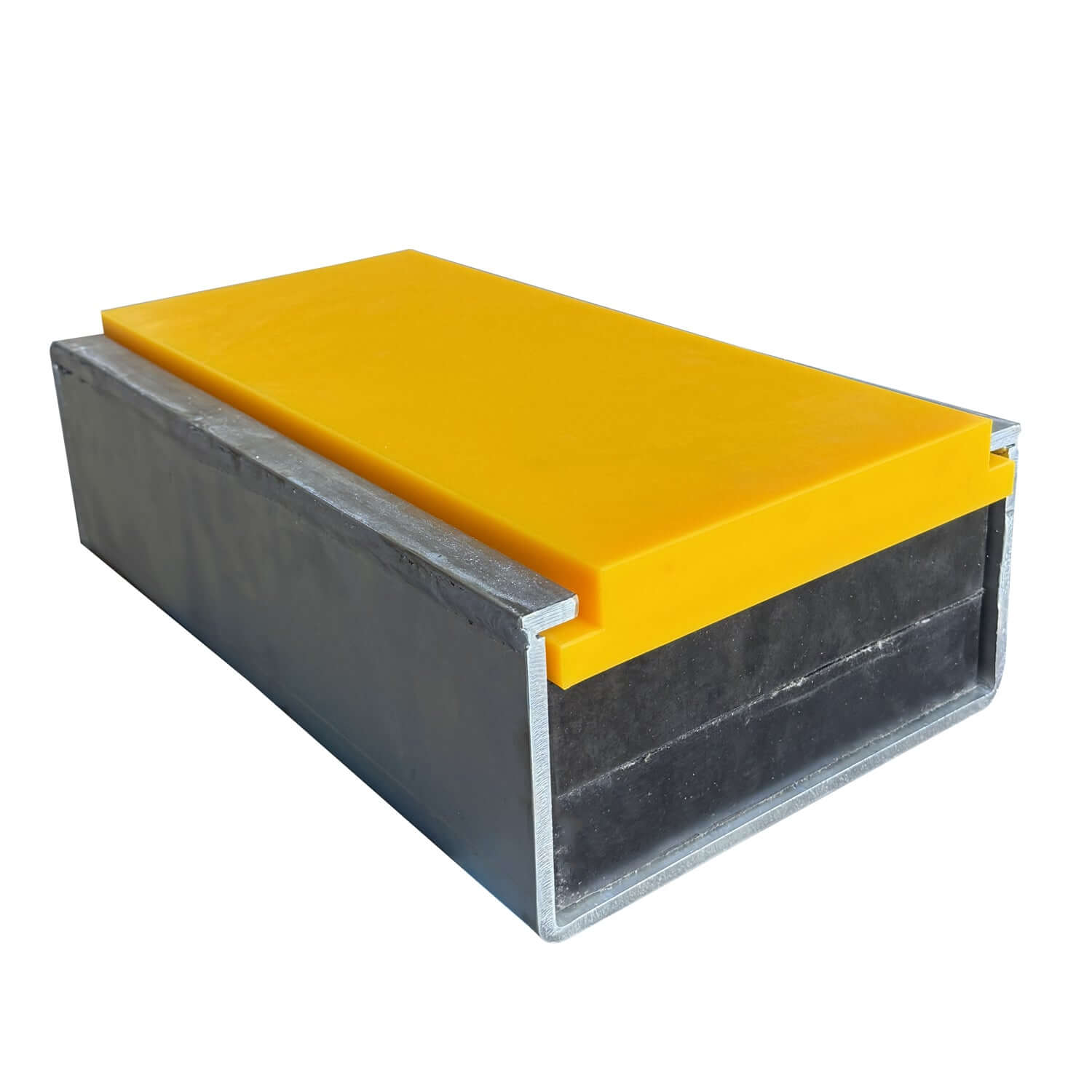

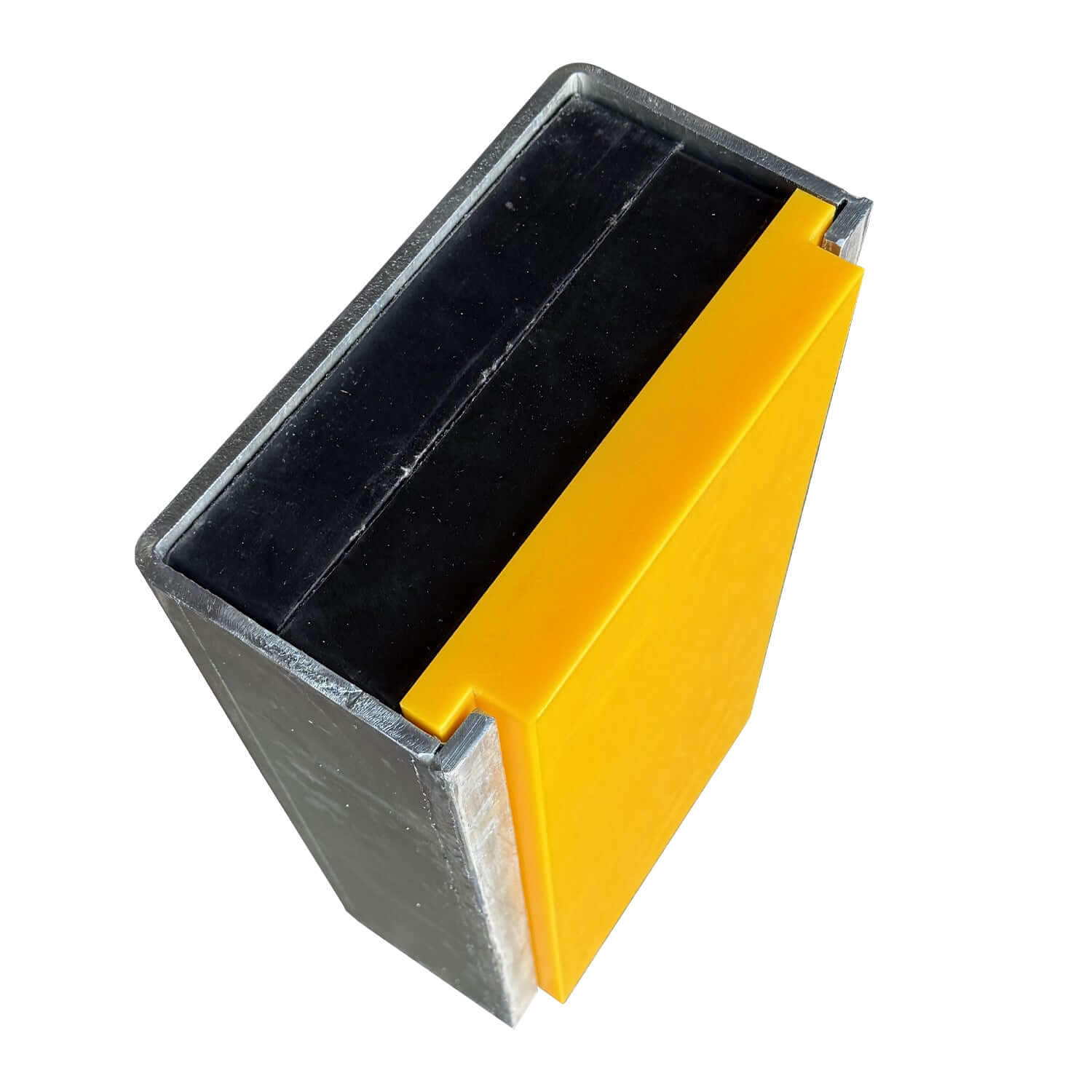

Heavy Duty Iron cladding Dock Rubber block with PE plate 465 x 280 x 160mm(H)

Protect your loading dock, building and vehicles from impact damage with the Rubbr Dock Bumper with UHMWPE Face Plate.

Designed for busy loading bays, this heavy-duty dock bumper features a large impact area and a low-friction UHMWPE front plate that allows the back of a truck or trailer to slide more freely during docking. With no exposed holes in the front face plate for trailers to snag on, it helps support smoother vehicle movement while reducing wear on your loading infrastructure.

The 50mm thick face plate sits inside a strong steel cradle back plate, giving the bumper a durable, practical design for commercial and industrial loading areas.

Best For

• Loading docks

• Warehouses

• Distribution centres

• Freight and logistics facilities

• Commercial buildings

• Industrial sites

• High-traffic loading bays

• Areas with frequent truck and trailer movement

Key Features

• Heavy-duty dock bumper with large impact area

• UHMWPE front face plate for low-friction contact

• No holes in the front face plate to reduce trailer snagging

• 50mm thick sliding face plate

• Steel cradle back plate for strength and support

• Helps protect buildings, docks and vehicles from impact damage

• Includes free fixings

• Suitable for demanding commercial and industrial use

• Cost-effective way to reduce loading dock damage

Why Choose This Dock Bumper?

Loading docks are constantly exposed to impact, friction and movement from trucks and trailers. Over time, that can lead to damaged dock edges, worn structures, vehicle wear and expensive repairs.

This dock bumper is designed to do more than simply absorb impact. The UHMWPE front plate has a very low friction coefficient, allowing the trailer to slide along the face instead of catching or dragging heavily against the dock protection.

The smooth face plate design also helps reduce snag points, while the steel cradle back plate provides a strong fixing base for long-term use.

Basically, it is built to take the hit, reduce the scrape and avoid the awkward “the truck got caught on the dock again” situation.

Product Specifications

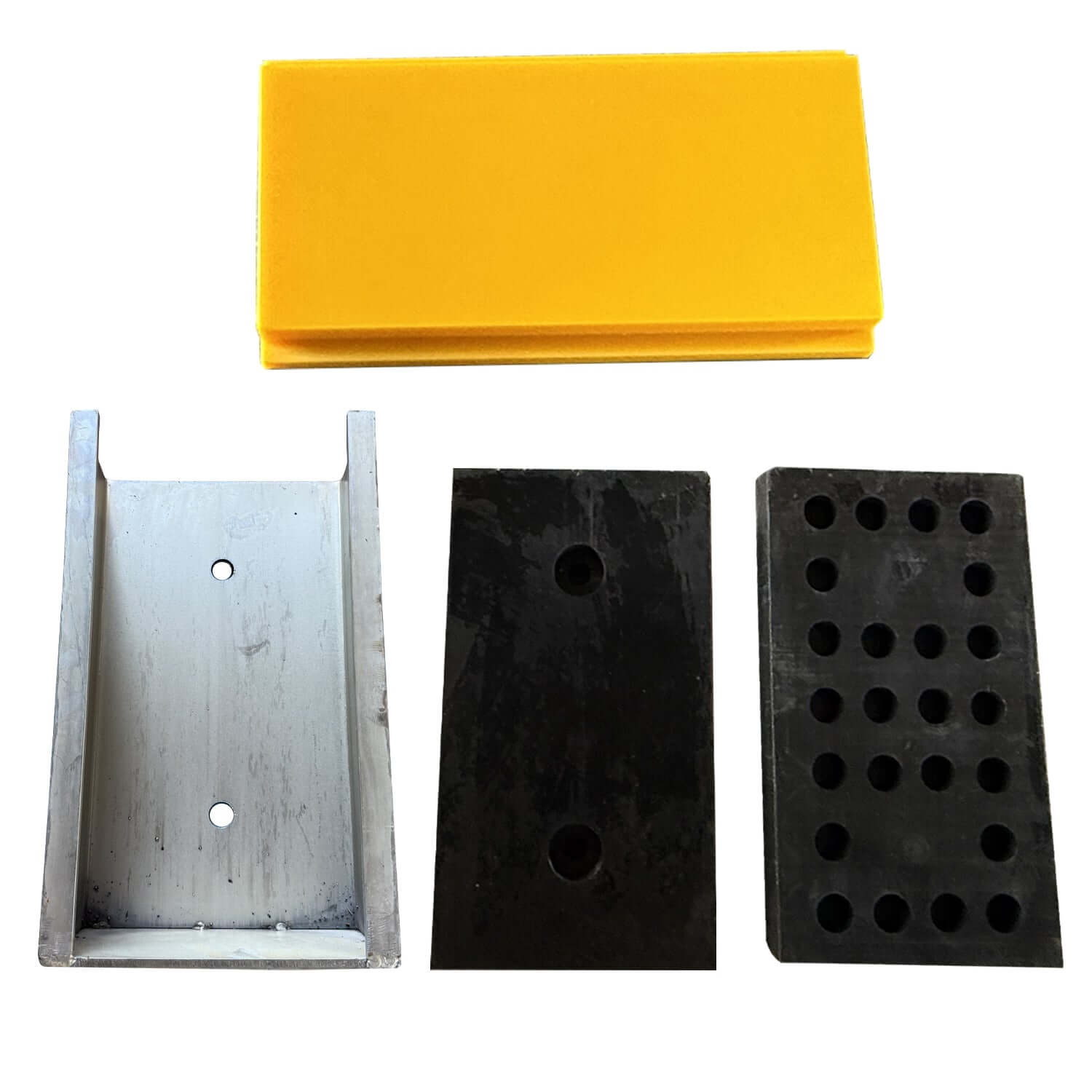

Component Details

UHMWPE Front Plate

The front plate is made from Ultra High Molecular Weight Polyethylene, a highly durable material designed for low-friction contact.

It allows the back of a truck or trailer to slide along the face of the bumper more easily, helping reduce wear, impact stress and snagging during docking.

Approximate dimensions: 450 × 250 × 50mm
Approximate weight: 5kg

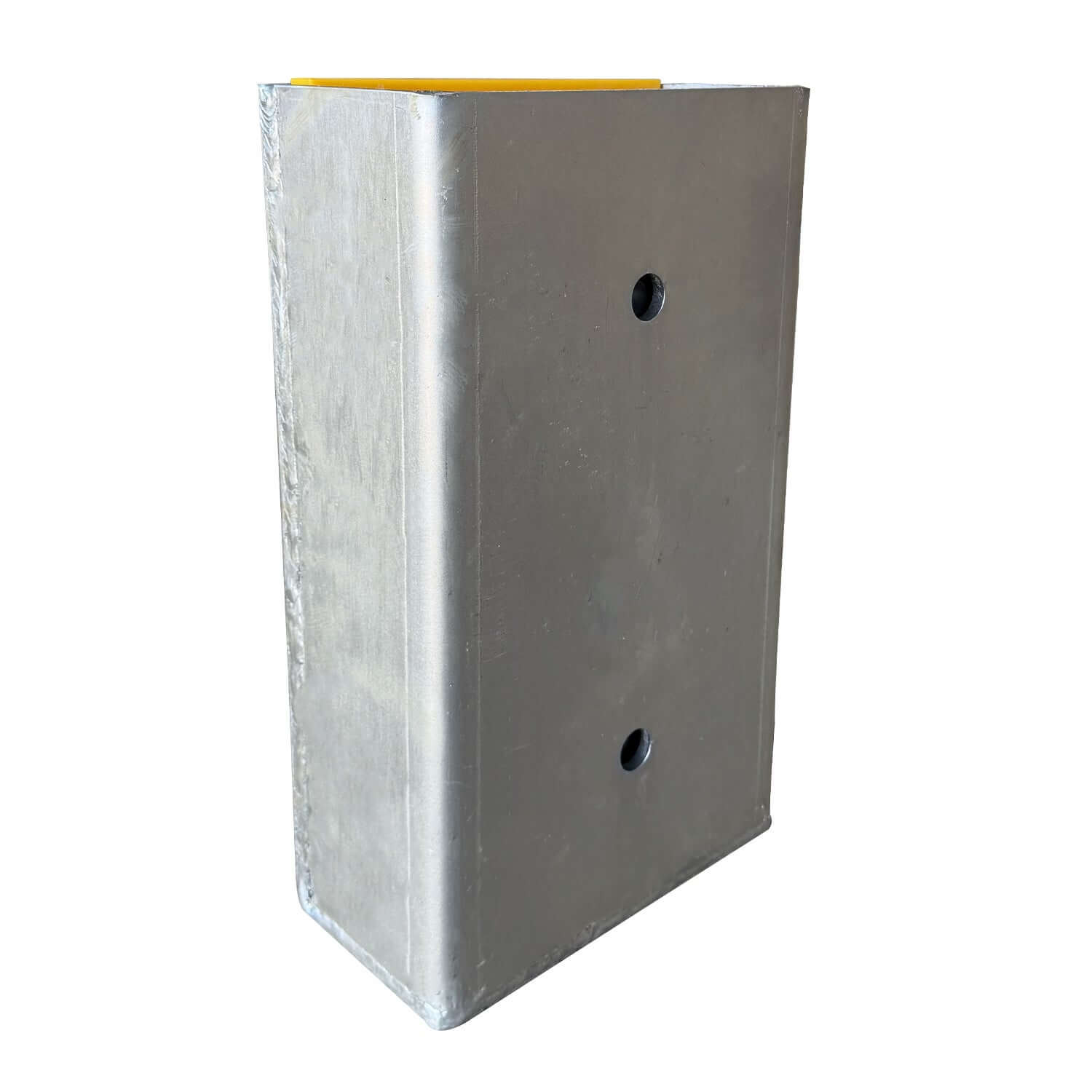

Steel Cradle Back Plate

The steel cradle back plate provides the main fixing and support structure for the dock bumper.

It features four fixing holes:

• 2 top holes at 26mm diameter, suitable for M24 bolts to fix to an above-dock angle bracket if required

• 2 bottom holes at 20mm diameter

Approximate dimensions: 470 × 275 × 130mm
Approximate weight: 21kg

Installation / Use

Install the dock bumper in the main vehicle contact zone of your loading dock or dock wall.

For best results:

• Position the bumper where the truck or trailer will make contact

• Ensure the UHMWPE face plate is facing outward

• Fix securely using the included fixings

• Check that the face plate can move freely within the steel cradle

• Inspect regularly as part of your site maintenance routine

Professional installation is recommended for commercial loading bays and high-impact environments.

Care and Maintenance

This dock bumper is designed for low-maintenance commercial use.

To keep it performing well:

• Wipe or hose off dirt and debris as needed

• Check that the UHMWPE face plate can slide freely

• Inspect fixings regularly for movement or wear

• Replace damaged components if required

• Avoid harsh solvents or abrasive cleaning chemicals

Delivery

This product is available for NSW-wide delivery. Shipping costs may vary depending on item size, weight and delivery location.

Once your order is processed, tracking details will be sent by email.

Built for Smoother Dock Protection

The Rubbr Dock Bumper with UHMWPE Face Plate is a strong, practical solution for protecting loading docks from repeated vehicle impact and friction damage.

Add it to your cart today and give your loading bay heavy-duty protection without making every truck arrival a contact sport.
